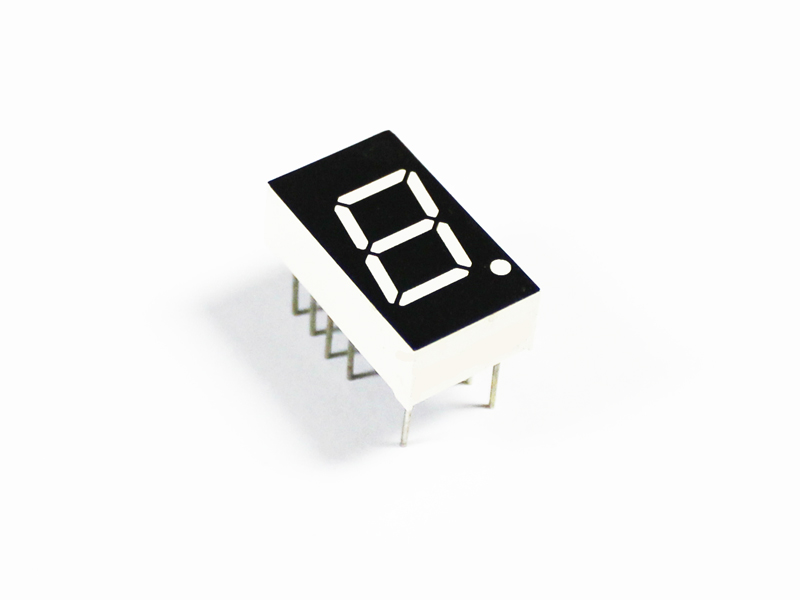

Part No.	L*W*H（mm）	Emitting color	Package Description	λD(nm)	Datasheet
KL04313WDBASR	11.00×18.80×6.50	Super red	Black Face, White Segment, common cathode	620-630nm
KL04313WDBAO	11.00×18.80×6.50	Orange	Black Face, White Segment, common cathode	600-610nm
KL04313WDBAY	11.00×18.80×6.50	Yellow	Black Face, White Segment, common cathode	585-595nm
KL04313WDBASG	11.00×18.80×6.50	Super green	Black Face, White Segment, common cathode	568-573nm
KL04313WDBAPG	11.00×18.80×6.50	Pure green	Black Face, White Segment, common cathode	515-525nm
KL04313WDBAB	11.00×18.80×6.50	Blue	Black Face, White Segment, common cathode	450-470nm
KL04313WDBAW	11.00×18.80×6.50	White	Black Face, White Segment, common cathode	/

Notes

    1, Surface color choice: black/gray/colored

    2, Epoxy color choice: white diffused/color diffused/wate clear

    3, Polarity choice: common cathode/common anode
